Rotary Cutters

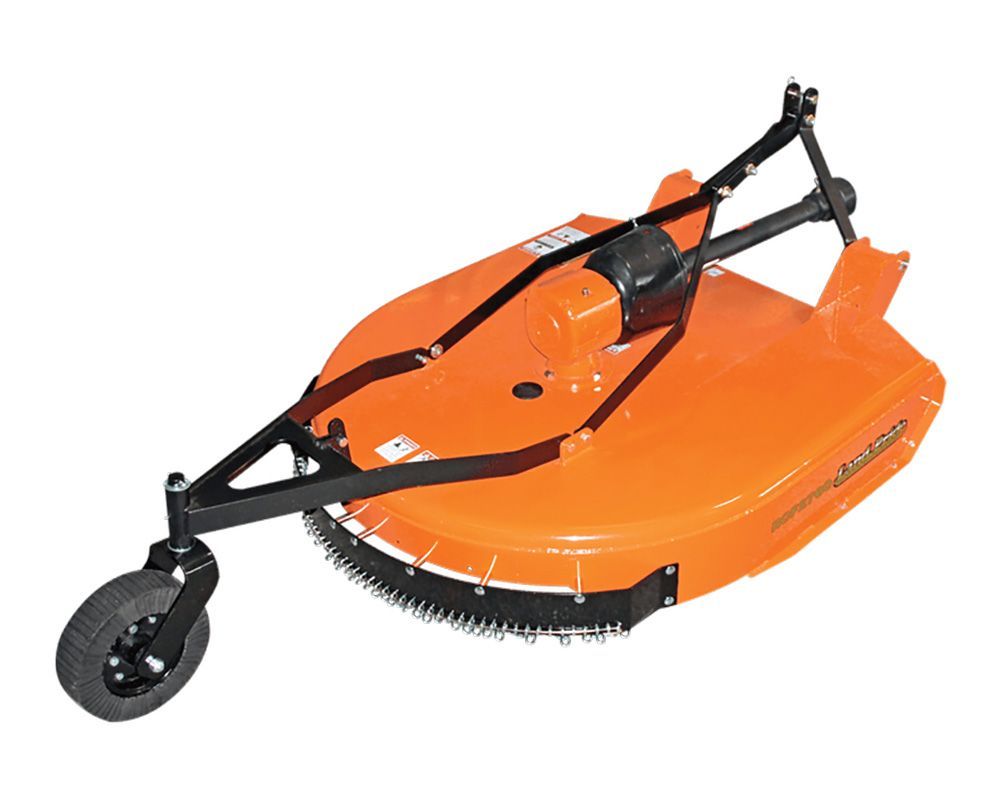

RCF 2772 Rotary Cutter
72" Rotary Cutting Mower
The RCF27 Series Rotary Cutters is a smooth top version of our RCR26 Series, offering the same great cut and ideal for grass, weeds, crops, brush and small trees up to 3 inches in diameter. These units come equipped standard with a 3/16" thick heavy-duty stump jumper and replaceable bolt-on skid shoes. Optional shields are available for the front and rear.
Features:
SURPASSED RUGGED INDUSTRY STANDARDS: All Land Pride Cutters have been designed and tested and meet rigorous voluntary testing procedures specified by ANSI.
5 YEAR GEARBOX WARRANTY: Shows our confidence in the gearbox integrity.
130 HP GEARBOX: A rugged heavy built gearbox capable of handling heavy cutting applications.
GEARBOX SEAL PROTECTION: Gearbox bottom seal protection for longer bearing life.
CAT. 4 DRIVELINE WITH 4-PLATE SLIP-CLUTCH: Slip-clutch driveline offers convenience for continual work.
LOWER CLEVIS TYPE 3-POINT HITCH: Allows for ease of hook-up to tractor. Also adds additional strength allowing for an even pull from the tractor’s lower arms, vs. pulling on a single pin design.
HEAVY 10 GAUGE DECK CONSTRUCTION WITH 1/4” SIDE SKITS: Can withstand more abuse than lighter gauge decks.
BOX TUBING DECK SUPPORTS: Makes for a stronger rigid deck.
FULLY WELDED DECK: Adds additional strength.
ROUND BACK DESIGN: Helps discharge grass better than enclosed or partially enclosed cutters.
11 1/4” DECK HEIGHT: Allows cutter to handle heavy cutting conditions.
1 1/2” TO 12” CUTTING HEIGHT: Provides for a wide range of cutting conditions.
HIGH CUTTING CAPACITY: Can cut brushy areas with saplings up to 3”.
SKID SHOES: Provides sidewall reinforcement and protection to bottom of sidewall.
1/2” X 4” HEAT-TREATED FREE SWINGING BLADES: Free swinging protects from obstructions. Heat-treated offers longer life.
SPLINED BLADE BAR HUB: Allows for tight positive fit of stump jumper and blade bar to gearbox output shaft.
3/16” PLATE STUMP JUMPER: Standard round stump jumper slides over stumps, rocks and debris.
HIGH BLADE TIP SPEED: RCF2772 = 14,861 FPM Ensures clean cut.
LAMINATED TAILWHEEL: Laminated material is long lasting in rough conditions.
4” X 15” SOLID RUBBER TAILWHEEL: Can’t go flat.
1 1/2” HEAVY-DUTY SPINDLE ON TAILWHEEL: Tailwheels take a beating, spindle gives the strength to protect tailwheel assembly.
OPTIONAL GUARDING: Protect against flying debris. Customer can choose to include single chain or rubber guarding on the front and single chain guarding on the back.

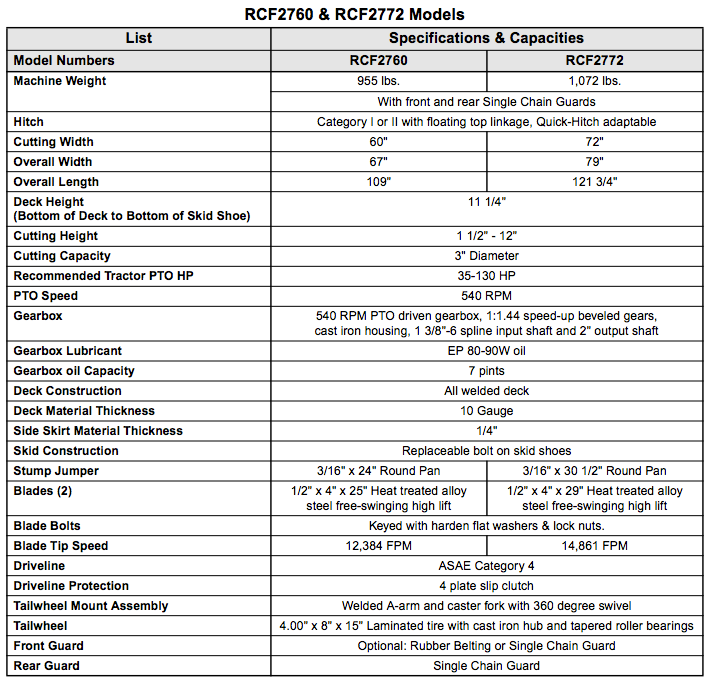

Specifications
