SGS Skeleton Grapples
SGS Skeleton Grapples

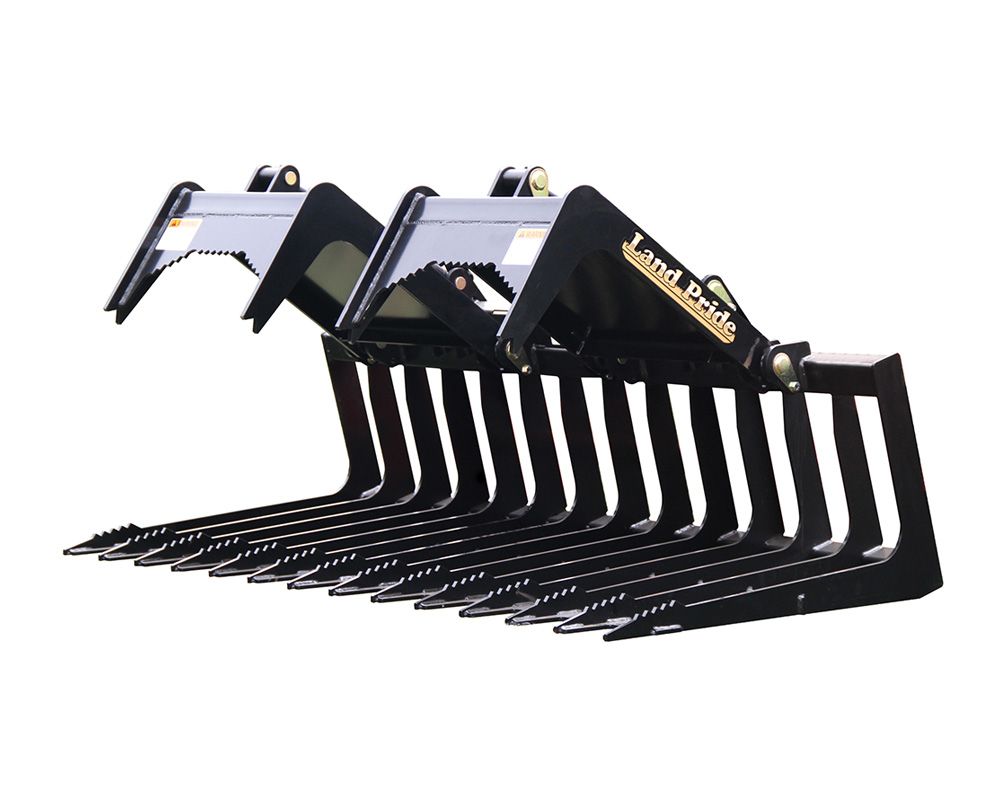

Let the SGS15 Series Skeleton Grapple do the digging for you by removing roots, stumps, and other timber or debris. The SGS15 offers 5-1/2" spacing between the teeth, smaller debris is sifted. Dual hydraulic cylinders can close at various gaps to handle irregular shapes, and serrated teeth make this grapple a workhorse in storm clean up and land clearing operations.
Features:

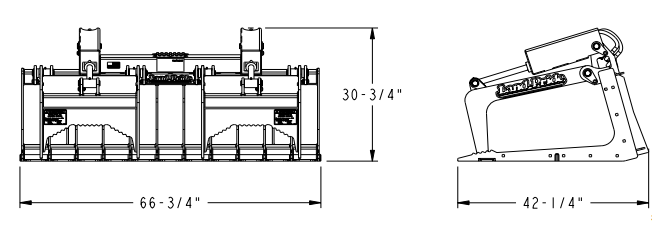

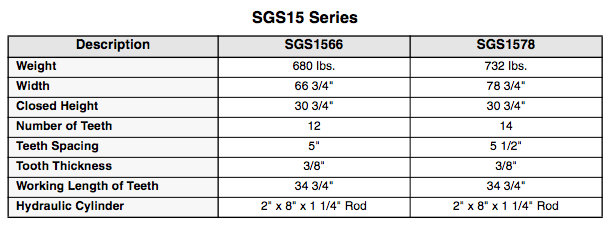

Click on the image for a larger veiw of the specs.
ATTACHES TO POWER EQUIPMENT EASILY: Uses Skid Steer Quick Hitch design for quick and easy attachment.
DESIGNED TO FIT SKID STEER LOADERS AND FRONT TRACTOR LOADERS: The quick attach plate mounted grapple can be attached to a wide variety of machines. Note: Tractor Loaders must be fitted with a Skid Steer universal quick attach mounting system.
DESIGNED TO PROTECT HYDRAULIC HOSES: Hydraulic hoses routed to prevent pinching.
GREASABLE HARDENED BUSHINGS AT ALL PIVOT POINTS: Bushings can be replaced if needed.
1 1/4" PIVOT PINS: Large diameter pins for extra strength.
TWO CYLINDER INDEPENDENT GRAPPLES: Able to secure uneven loads.
GRADE 80 TEETH MATERIAL: More than double the strength of mild steel.
FRONT GUSSETED TINES: Strengthens tine tips.
OPEN BOTTOM AND BACK: Allows dirt to fall through tines.
OPTIONAL CYLINDER SHIELDS: Protects hydraulic cylinder and fittings.
