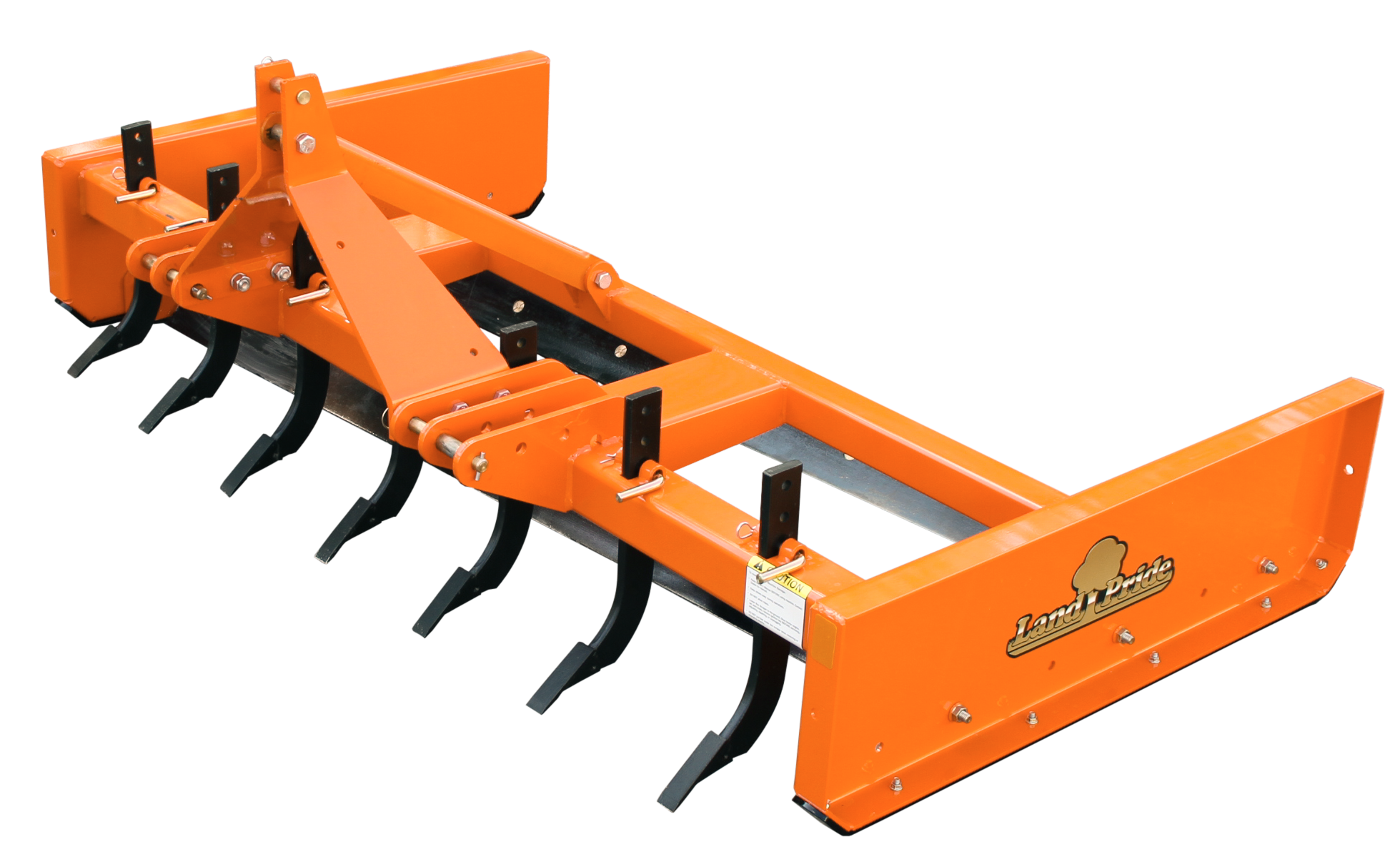

GS 2596 Grader Scraper


GS 2596 Grader Scraper

$4.00

The GS25 Series Grading Scrapers are ideal for renovating gravel driveways and roads, leveling construction and turf sites, and cleaning barns and chicken coups. Grading Scrapers have uses in applications such as landscaping operations, farms, ranches, construction sites, hunting camps, logging sites, mining operations, large estates, small acreages, sod farms, and municipal and county rural road maintenance facilities. These Grading Scrapers are extra user-friendly and a low cost alternative for road grading applications.

Add To Cart

Unlike a box scraper, they are not designed to transfer large volumes of dirt from one location to another and as a result do not require the additional horsepower that a box scraper  requires. Nor does it require the tending of tractor 3-point lift controls to maintain grade that a box scraper might also require. Simply setting a properly adjusted GS25 Series Grading Scraper on the ground and driving forward enables the operator to grade off high spots and fill in ruts and low spots on unimproved roads and lanes with little or no manipulation of the tractors 3-point hitch controls. Unlike a rear blade, they require no adjustment of blade angling or offset positions. As a result, the GS25 Series Grading Scraper simply and quickly moves dirt or aggregate from high spots to low spots.

Features:

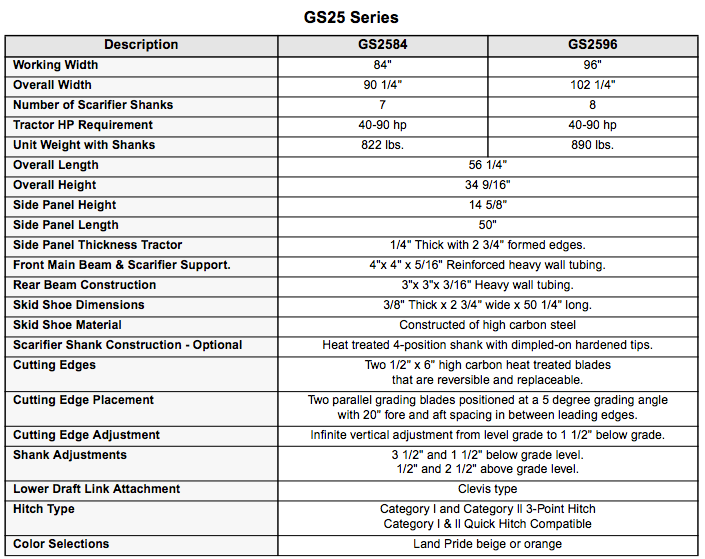

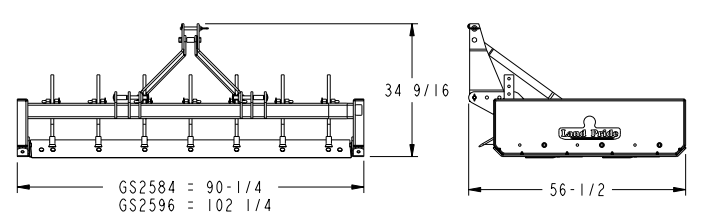

Click on the image for a larger view of the specs.

  • CAT. L AND CAT.LL QUICK HITCH COMPATIBLE. HAS LOWER HITCH CLEVIS TYPE MOUNTINGS: Makes for faster and easier hookup to the tractor.
  • DUAL ADJUSTABLE HEIGHT GRADING BLADES AND OPTIONAL 4-POSITION SCARIFIER SHANKS: Allows the scraper to be adjusted to desired amount of cultivation, leveling, and grading action.
  • REVERSIBLE HEAT TREATED HIGH CARBON STEEL GRADING BLADES: For excellent wear resistance and long service life.
  • HARDENED TIPS ON OPTIONAL SCARIFIER SHANKS: Assures long service life.
  • REPLACEABLE AND FULL LENGTH HEAVY GAUGE SKID SHOES: Makes for easier operation and long unit life.
  • SKID SHOES ARE CONSTRUCTED OF HIGH CARBON STEEL: Extends the wear life of the skid shoes.
  • REVERSIBLE SKID SHOES: Extends the life of the skid shoes.
  • HEAVY DUTY FRAME CONSTRUCTION: Assures long lasting reliability and performance.
